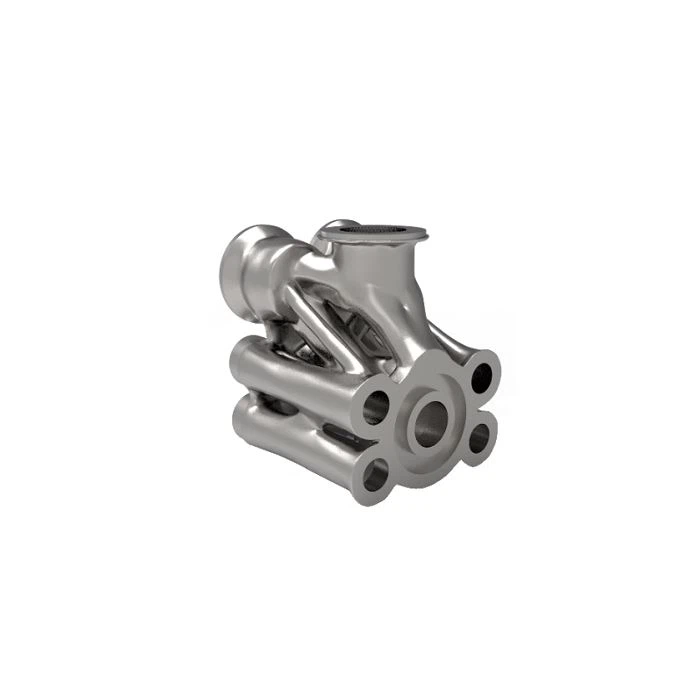

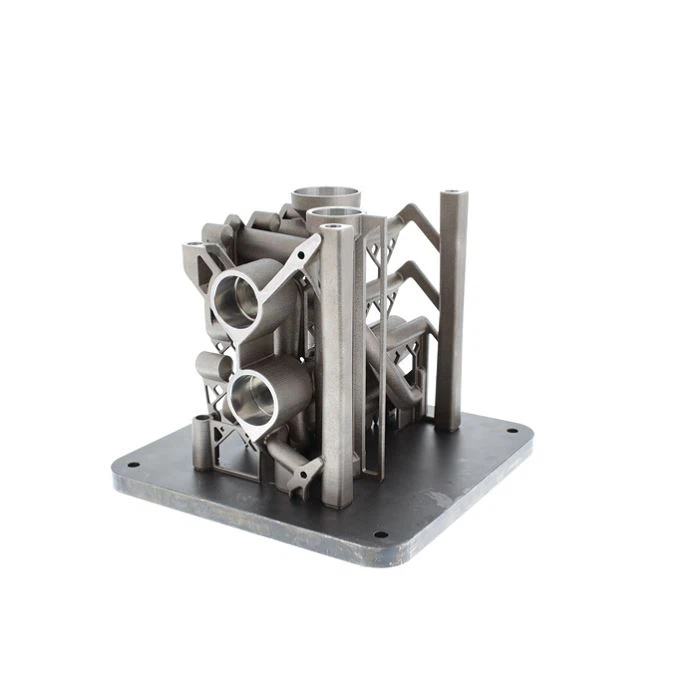

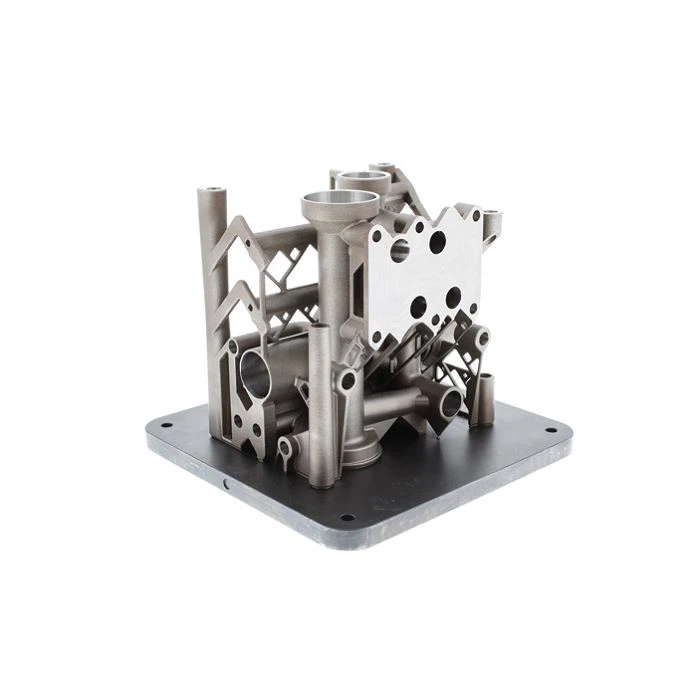

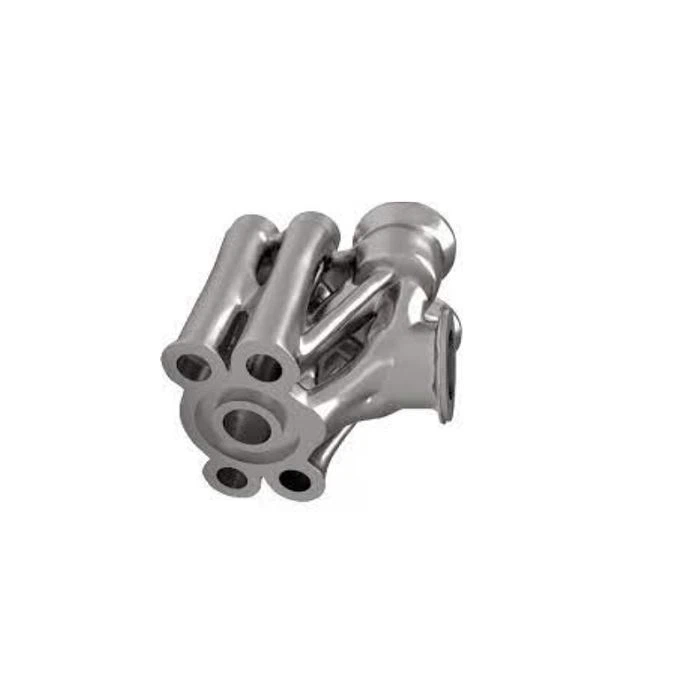

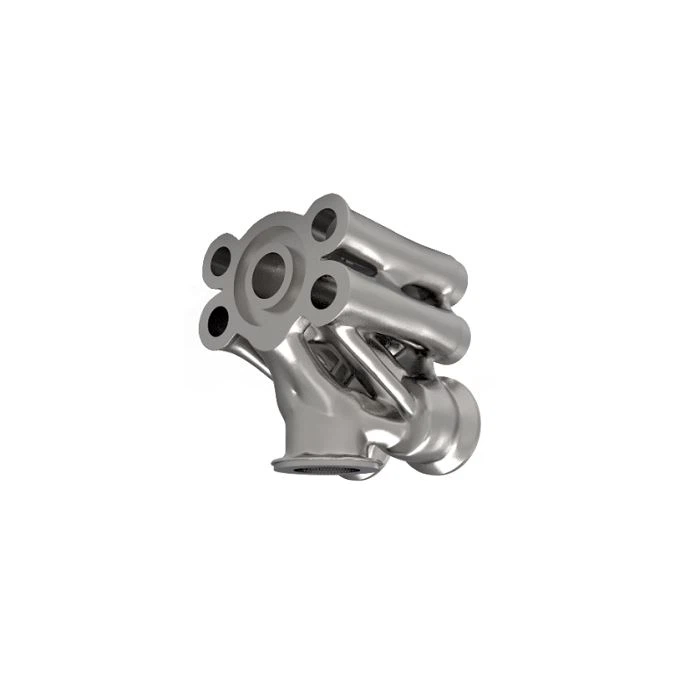

Stainless Steel 316L 3D Printing Hydraulic Manifold

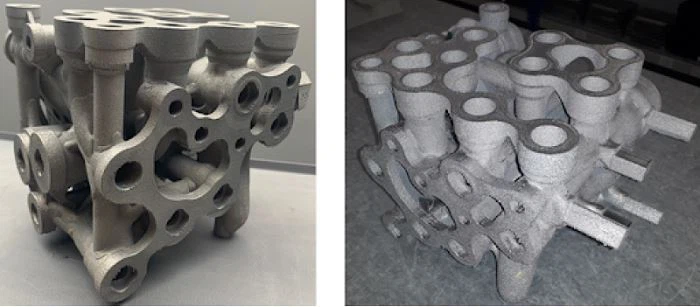

The internal oil route of the stainless steel 316L 3D printing hydraulic manifold has been adjusted, removing several right angles, cutting the total length of the oil passage, improving the oil flow, and operating more steadily. These changes resulted in a 70% weight reduction. In both low- and high-temperature situations, stainless steel 316L has high strength and is extremely resistant to corrosion.
Product Description
Technology | DMLS or SLM 3D Printing |
working principle | There are multiple channels inside, allowing oil to flow through it, which is used to control mechanical equipment |
Application | aerospace, vehicles, mechanical devices, automotive, etc. |
Material | AlSi10Mg aluminum alloy, 316L stainless steel, 17-4PH Stainless Steel, titanium alloy, cobalt-chromium alloy, and Inconel 718 Impeller, etc |
Layer thickness | 0.02mm~0.08mm |
Surface treatment | Very close to the performance of forged parts |
Certificate | ISO9001, ROHS, REACH, ISO10993, USP Class VI, FST, FAA, etc. |
MOQ | 1 piece |
File type | STL |
Printing time | Depending on the structure, it usually 1—5 business days |
Export country | Northern America, Europe, Australia, Japan, Korea, etc. |

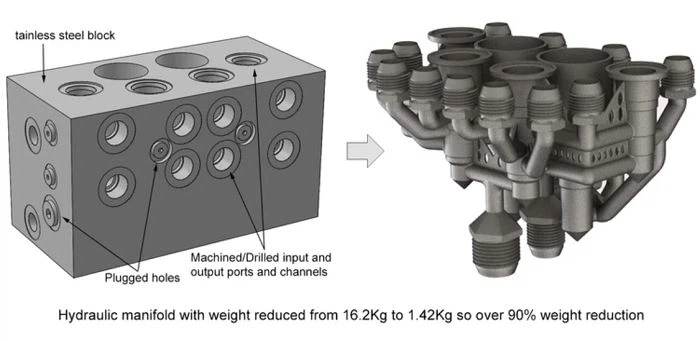

Subtractive Manufacturing VS Additive Manufacturing
Manufacturing Method | Subtractive Manufacturing
| Additive Manufacturing
|
Material | GGG40 | SS316L |
Volume(cm3) | 640cm3 | 136.23cm3 |
Mass(kg) | 5KG | 1.06KG |
Cost | Good for HIGH Volume | Good for Low Volume |
Prototyping | Minimum Batch Required | Suitable for Prototype |
Lead Time | SLOW 4 or 6 weeks for casting and CNC Machining | FAST Printing- 1 Day Machining-1 Day |
Complexity | NO | YES |
Customization | NO | YES |
Weight Reduction | NO | -78% |
Performance | Pressure drop due to limitation of conventional machining | Pressure drop is optimized, with About a 30% of reduction in pressure drop. |

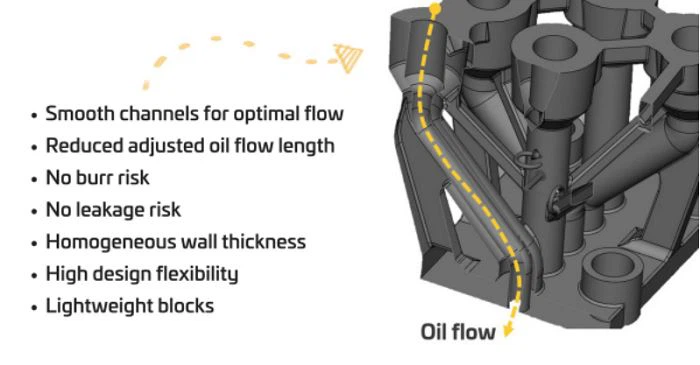

The benefit of stainless steel 316L 3D printing hydraulic manifold
★Weight reduction
★Improve flow efficiency
★Avoid dirt damage
★Reliable and low risk of leakage
★No mold, express iteration
FAQ
Q: What can I buy from you?
A: 3D printing/Rapid prototype/Metal 3d printing /FDM 3d printing/SLS/SLM/MJF
Q: How can you guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q. How about your quality?
A: ◆Our management and production are executed strictly according to ISO9001: 2008 Quality System.
◆We will make the operation instruction once the sample is approved.
◆We will 100% inspect the products before shipment.
◆If there is a quality problem, we will supply the replacement at our shipping cost.
Q: I have an idea for a new product, but don't know if it can be manufactured. Can you help?
A: Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling, and likely set-up costs.
Welcome all inquiries and orders of 3D printing requesters from all over the world, and we will give you reasonable prices and good service to you.
